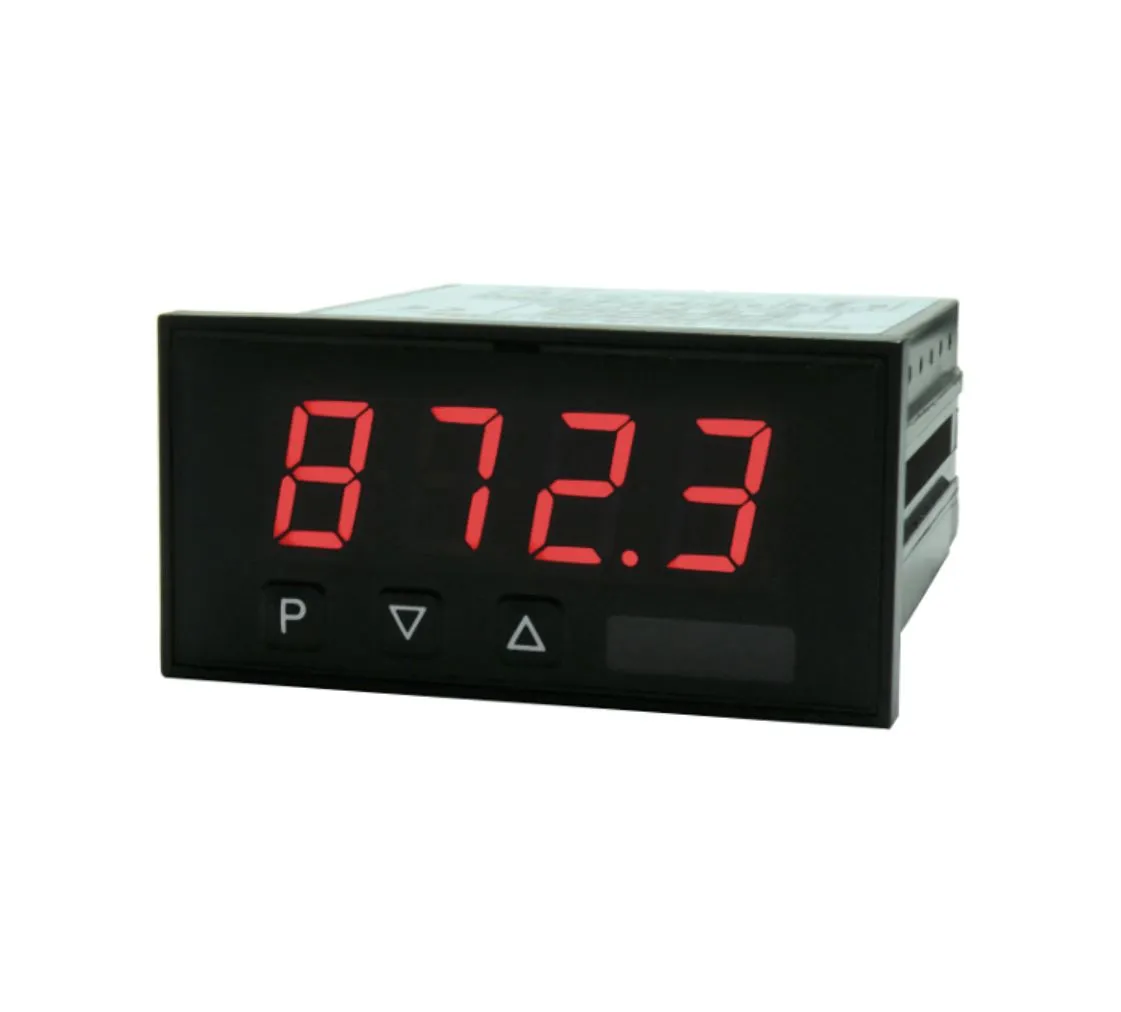

M1.72-144 SR2
| Technical data | |
|---|---|
Dimensions (WxHxD) | 72 x 36 x 113 mm |
Display range | -1999 - 9999 |
Support points for linearizing the measurement input | 10 |
MIN / MAX value query that can be switched off Operating lock via 4-digit code Membrane keyboard | |
The M1.72-144 SR2 is a 4-digit display for measuring DC voltage signals via shunt and visual monitoring of the limit value via the display. The display is configurable via three front keys or by means of optional PC software. In addition, 2 further switching points are optionally available. A direct limit value adjustment in operating mode and selectable software functions form a solid device concept.
| Product key M1.72-144 SR2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
-
-
-
-
-
-
-
-
-
