M2.96-146 N

Solicitar ahora Data sheet

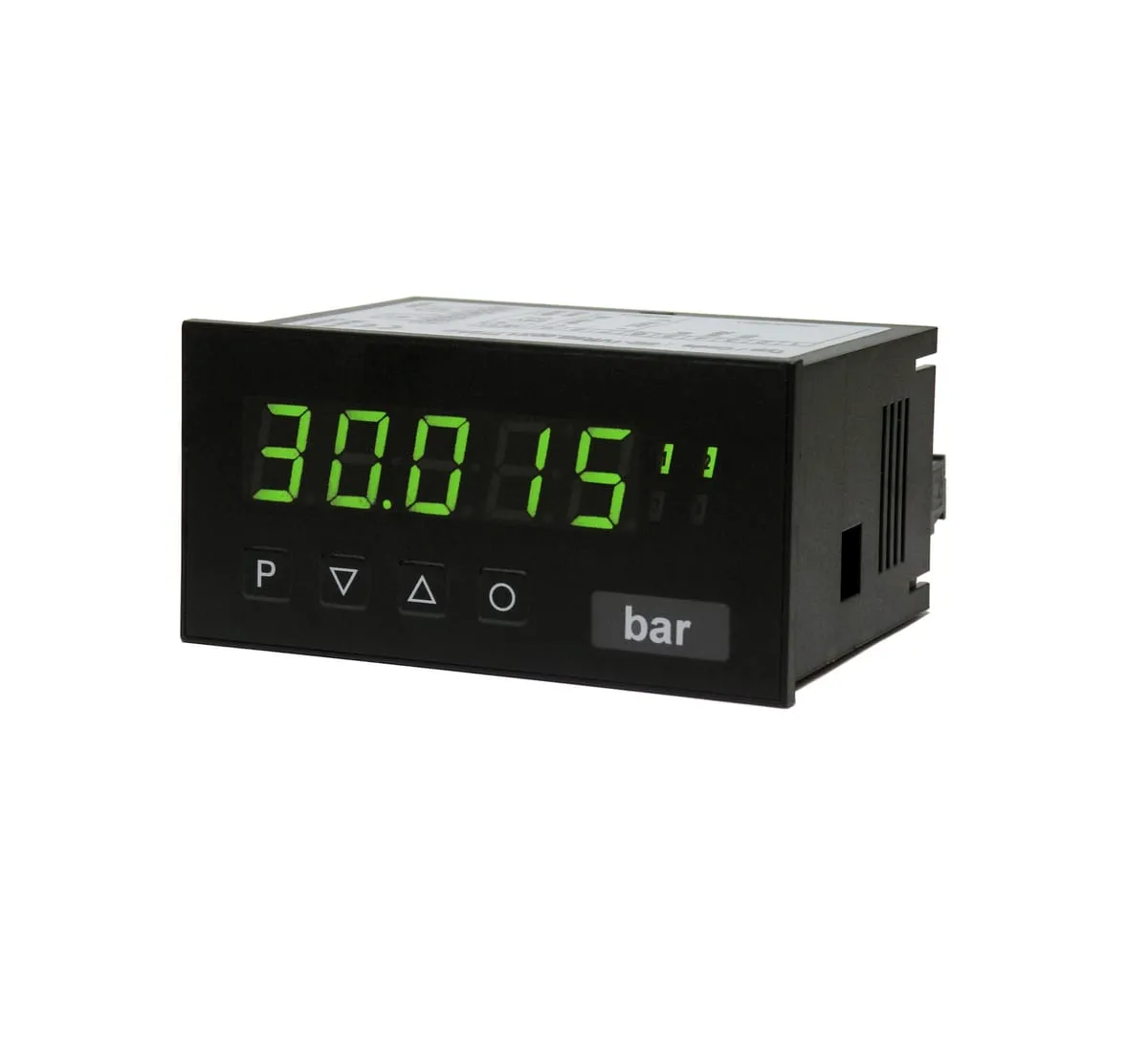

CELSA M2.96-146 N
Technical data
Dimensions (WxHxD)
96 x 48 x 89 mm
Display range
-99999 - 999999
Operating lock via 4-digit code
Membrane keyboard
The M2.96-146 N digital indicator is controlled via Profibus and displays digits and characters on a 6-digit 7-segment display. The communication can be controlled via a bus master. The display automatically detects the used baud rate (up to 12 MBit/s) via the bus master and needs as only information the Profibus address to be used. The five operating modes available for selection_x000D_ as well as the compact installation depth of 89 mm form a solid device concept.
Product key M2.96-146 N
M2 96 146 N
M2 Housing series

Width x Height: 96 x 48

Digit height: 14 mm

Number of digits: 6

Without

 Variants
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
M2.96-146 N / 230AC N 0 R P M2.96-146 N / 30DC N 0 R P M2-1BR6B.9000.570CD M2-1BR6B.9000.670CD 70004-1784 70004-1785 9501337549466 9501337543532 230AC 10-30DC - - - - - - - -
-
-
-
-
-
-
-
-
