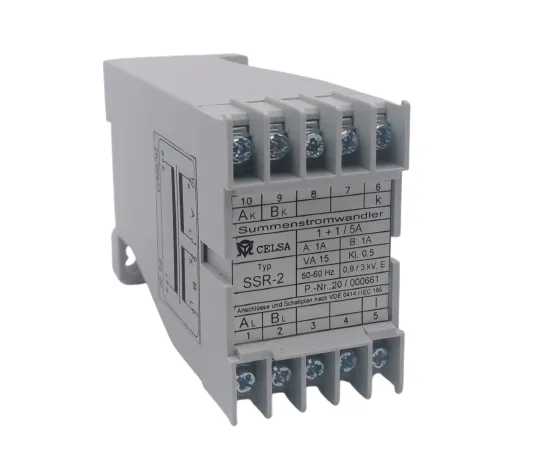

SSRK-2
for cable-mounted current transformers
| Datos basicos | |
|---|---|
Numero de articulo | 70140-7001 |
Peso | 400 |
The SSRK-2 to SSRK-6 current summing transformers are specifically designed for use with split-core current transformers (CTs). They enable the summing of 2 to 6 currents in the secondary circuit of low-power current transformers. Their compact design and high accuracy (Class 0.5) make these transformers ideal for energy measurement in low-voltage networks. The low burden of just 0.2 VA is specifically tailored to the low output power of split-core current transformers.
| Datos tecnicos | |
|---|---|
Alimentacion | |
Tension de alimentacion | 24 V DC / 110-230 V AC (48-63 Hz) |
Circuito de medicion | |
Entrada de medicion | 3x400 V AC (L1/L2/L3/N) |
Entradas/salidas | |
Relees de salida | 3x changeover contacts |
Corriente nominal del rele | 5 A / 250 V AC |
Entradas digitales | I1-I3; optional I4-I5 |
Comunicacion | |
Interfaz | Modbus RTU (RS-485), optional |
Montaje y conexion | |
Montaje | DIN rail EN 60715 |
Seccion de conductor | max. 2.5 mm², stripping length 8 mm |
Par de apriete | max. 0.5 Nm |
Grados de proteccion | |
Carcasa | IP2X/B |
Bornes | IP2X/B |
Condiciones ambientales | |
Servicio | -25 ... +65 °C |
Almacenamiento | -40 ... +70 °C |
Humedad | 5 ... 95 % RH, non-condensing |
Normas | |
Normas compatibles | VDE-AR-N 4105/4110 EN 50549-1/-2 CEI 0-21 C10/11 |
