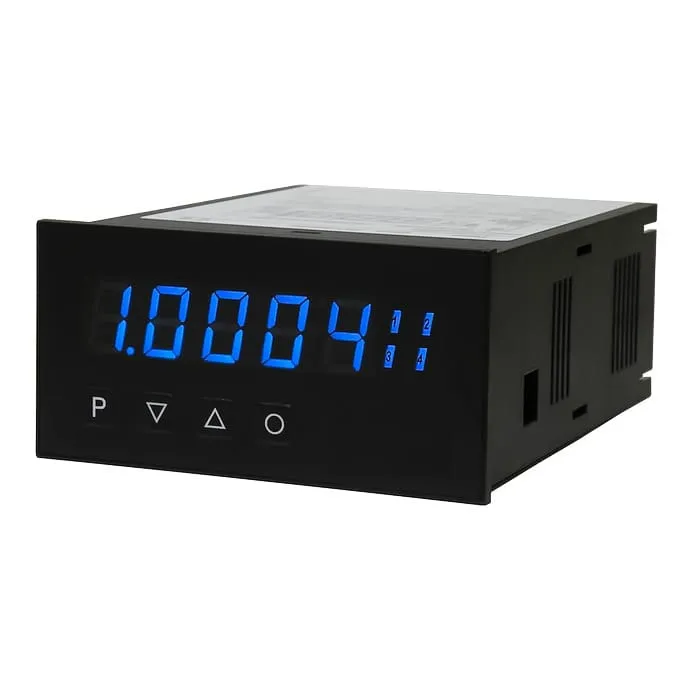

M3.96-145 AC4L
| Technical data | |
|---|---|
Dimensions (WxHxD) | 96 x 48 x 139 mm |
Display range | -19999 - 99999 |
Support points for linearizing the measurement input | 30 |
MIN / MAX value query that can be switched off Operating lock via 4-digit code RMS Membrane keyboard | |
The M3.96-145 AC4L is a 5-digit display for measuring high AC voltage signals TRMS up to 600 VAC and a visual limit value monitoring via the display. Configuration is done via 4 front panel push buttons or via the optional PC software PM-TOOL. Optional interfaces RS232/RS485, 2 analog outputs, one digital input and up to 8 setpoints are available. Selectable software functions and a direct limit value adjustment in the operating mode complete the modern device concept.
| Product key M3.96-145 AC4L | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
-
-
-
-
