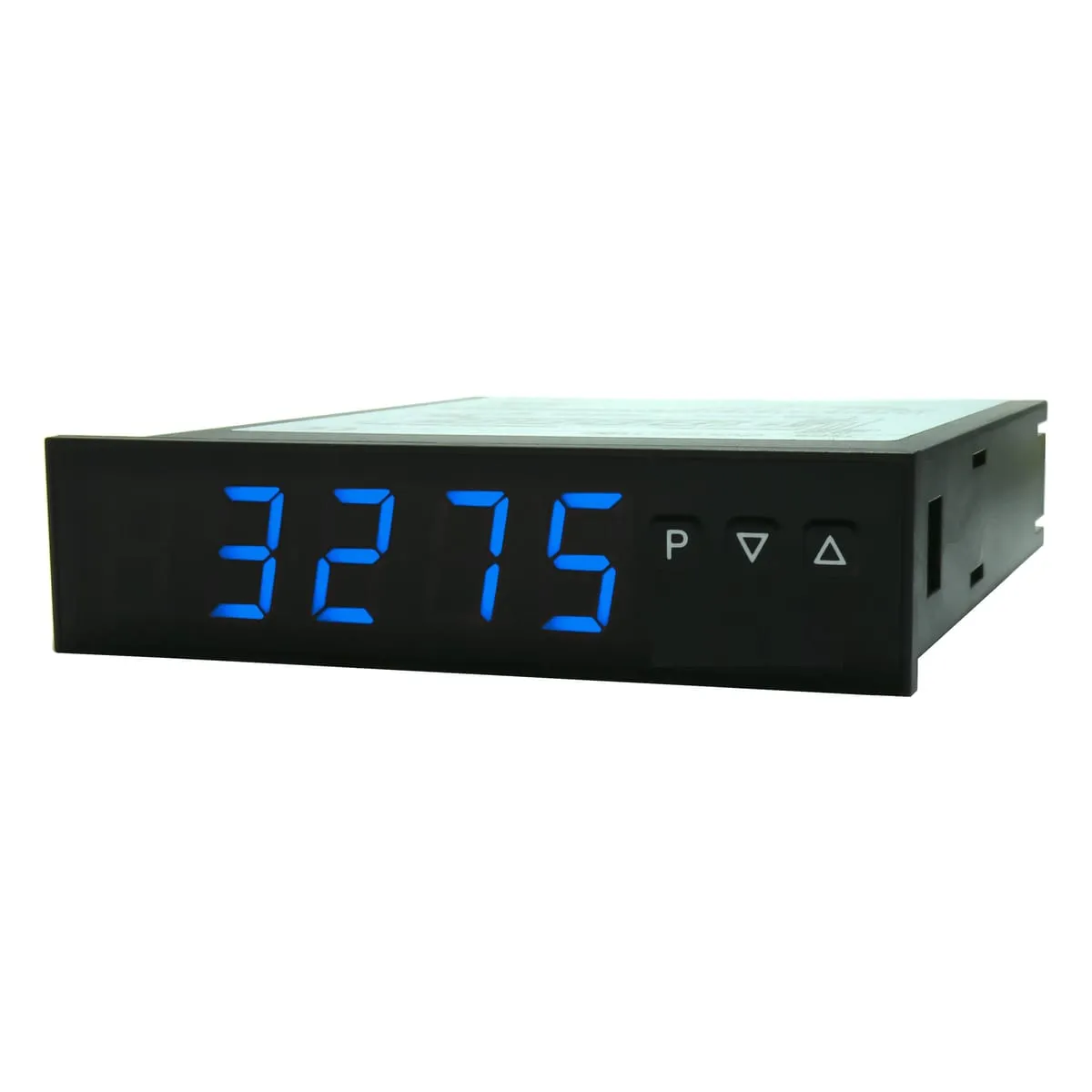

M3.96.2-145 AC4EL
| Technical data | |
|---|---|
Dimensions (WxHxD) | 96 x 24 x 145 mm |
Display range | -19999 - 99999 |
Support points for linearizing the measurement input | 30 |
MIN / MAX value query that can be switched off Operating lock via 4-digit code RMS Membrane keyboard | |
The M3.96.2-145 AC4EL is a 5-digit digital display for measuring AC voltage/AC current signals TRMS and visual limit value monitoring via the display. The configuration is done via 3 front keys or by means of an optional PC software. Optional RS232/RS485 interfaces, an analog output and 2 setpoints are available. Selectable software functions and a direct limit value adjustment in the operating mode complete the device concept.
| Product key M3.96.2-145 AC4EL | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
-
-
-
-
-
-
-
-
-
