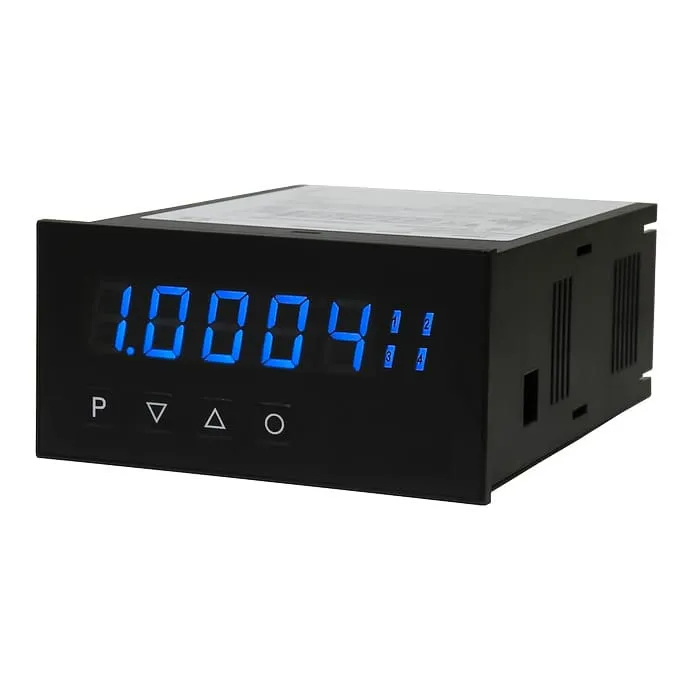

M3.96-145 DC4
| Technical data | |
|---|---|
Dimensions (WxHxD) | 96 x 48 x 139 mm |
Display range | -19999 - 99999 |
Support points for linearizing the measurement input | 30 |
MIN / MAX value query that can be switched off Operating lock via 4-digit code Membrane keyboard | |
The M3.96-145 DC4 is a 5-digit display for the_x000D_
measurement of high DC voltage signals up to 600 VDC and visual limit monitoring via the display. The configuration is done via 4 front keys or by means of an optional PC software. Optionally, 2 analog outputs, RS232/RS485 interfaces, a digital input and up to 8 setpoints are available. Selectable software functions and a direct limit value adjustment in the operating mode complete the modern device concept.
| Product key M3.96-145 DC4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
-
-
-
-
-
