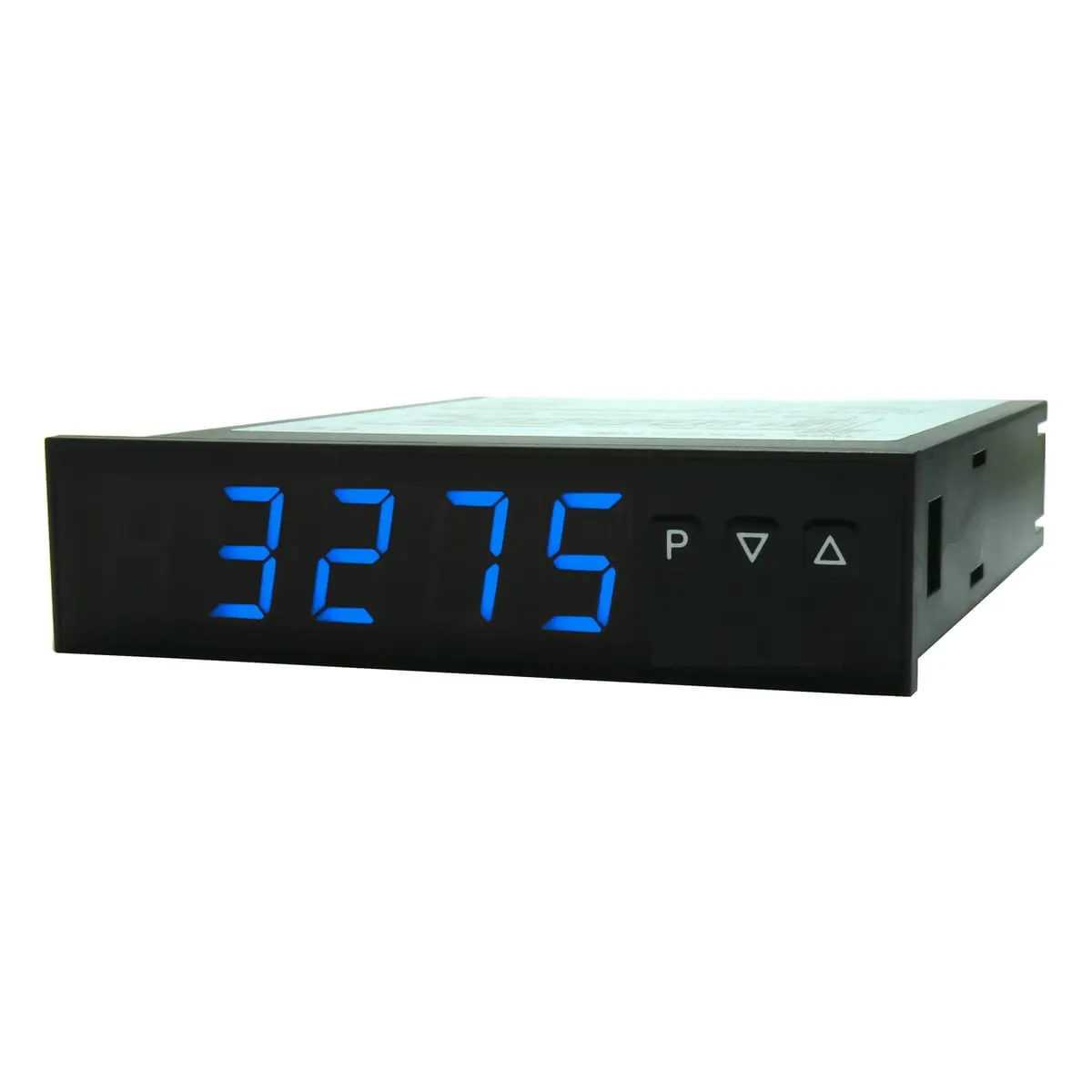

CELSA M3.96.2-145 TD
Technical data
Dimensions (WxHxD)
96 x 24 x 0 mm
Display range
-19999 - 99999
Support points for linearizing the measurement input
30
MIN / MAX value query that can be switched off
Operating lock via 4-digit code
Membrane keyboard
The M3.96.2-145 TD is a 5-digit display for measuring DC voltage/DC current signals and visual limit value monitoring via the display. Configuration is done via 3 front keys or by means of optional PC software PM-TOOL. Optionally, an analog output, RS232/RS485 interfaces, a sensor supply, a digital input and two setpoints are available. Selectable software functions and a direct limit value adjustment in the operating mode complete the device concept.
Product key M3.96.2-145 TD
M3 96 145 TD
M3 Housing series

Width x Height: 96 x 24

Digit height: 14 mm

Number of digits: 5

0/4 - 20mA; 0/2 - 10 VDC

 Variants
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
M3.96.2-145 TD / 240AC N R2 R M3.96.2-145 TD / 40DC N R2 R M3.96.2-145 TD / 40DC N A R M3-3VR5B.0001.S72BD M3-3VR5B.0001.W72BD M3-3VR5B.00X1.W70BD 70004-1527 70004-1548 70004-1621 9502141421993 9502139956537 9502141262732 240AC 40DC 40DC - - - - - 1 2 2 - - - -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
M3.96.2-145 TD / 240AC 243 R2 R D M3.96.2-145 TD / 40DC N 0 R M3.96.2-145 TD / 240AC N 0 R M3-3VR5B.0301.S72BD M3-3VR5B.0001.W70BD M3-3VR5B.0001.S70BD 70004-1652 70004-1661 70004-1670 9502141627791 9502141314448 9502141499725 240AC 40DC 240AC 24DC/30mA - - - - - 2 - - - - -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
M3.96.2-145 TD / 240AC 243 0 R D M3.96.2-145 TD / 240AC 243 A R D M3.96.2-145 TD / 240AC 243 AR R D M3-3VR5B.0301.S70BD M3-3VR5B.03X1.S70BD M3-3VR5B.03X1.S71BD 70004-1820 70004-1821 70004-1822 9501334298459 9501334289839 9501334229316 240AC 240AC 240AC 24DC/30mA 24DC/30mA 24DC/30mA - 1 1 - - 1 - - -
-
-
-
-
-
-
-
-
-
-
-
-
M3.96.2-145 TD / 240AC N 0 T M3.96.2-145 TD / 240AC N A R M3.96.2-145 TD / 240AC N AR R M3-3VT5B.0001.S70BD M3-3VR5B.00X1.S70BD M3-3VR5B.00X1.S71BD 70004-1823 70004-1824 70004-1825 9501334199367 9501333943411 9501333938196 240AC 240AC 240AC - - - - 1 1 - - 1 - - -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
M3.96.2-145 TD / 240AC N R R M3.96.2-145 TD / 40DC 243 0 R D M3.96.2-145 TD / 40DC 243 A R D M3-3VR5B.4001.S71BD M3-3VR5B.0301.W70BD M3-3VR5B.03X1.W70BD 70004-1826 70004-1827 70004-1828 9501333857718 9501333639420 9501333482323 240AC 40DC 40DC - 24DC/30mA 24DC/30mA - - 1 1 - - - - -
-
-
-
-
-
-
-
-
-
-
-
-
-
M3.96.2-145 TD / 40DC 243 AR R D M3.96.2-145 TD / 40DC N 0 T M3.96.2-145 TD / 40DC N AR R M3-3VR5B.03X1.W71BD M3-3VT5B.0001.W70BD M3-3VR5B.00X1.W71BD 70004-1829 70004-1830 70004-1831 9501333392776 9501333381817 9501333282336 40DC 40DC 40DC 24DC/30mA - - 1 - 1 1 - 1 - - -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
M3.96.2-145 TD / 40DC N R R M3.96.2-145 TD / 40DC N R2 T M3-3VR5B.3001.W71BD M3-3VT5B.0001.W72BD 70004-1832 70004-1833 9501333265926 9501332914870 40DC 40DC - - - - 1 2 - -
-
-
-
-
-
-
-
-
-
-
