M3.96-145 DMS-M

Solicitar ahora Data sheet Instruction manual

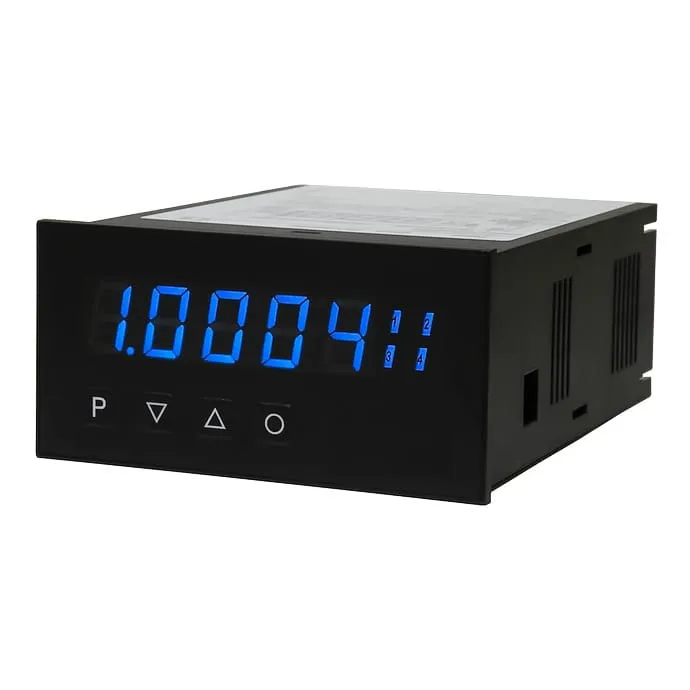

CELSA M3.96-145 DMS-M
Technical data
Dimensions (WxHxD)
96 x 48 x 139 mm
Display range
-19999 - 99999
Support points for linearizing the measurement input
30
MIN / MAX value query that can be switched off
Operating lock via 4-digit code
Membrane keyboard
The M3.96-145 DMS-M is a 5-digit display for measuring force/weight using strain gauges with switching contact 80% adjustment and a visual limit value monitoring via the display. Configuration is done via four front keys or by means of an optional PC software. Two analog outputs, RS232/RS485 interfaces and up to 8 switching points are optionally available. Selectable software functions and a direct limit value adjustment in the operating mode complete the modern device concept.
Product key M3.96-145 DMS-M
M3 96 145 DMS-M
M3 Housing series

Width x Height: 96 x 48

Digit height: 14 mm

Number of digits: 5

DMS Mass pressure

 Variants
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
M3.96-145 DMS-M / 240AC N 0 R D M3.96-145 DMS-M / 240AC N A R D M3.96-145 DMS-M / 240AC N A2 R D M3-1MR5B.020X.S70BD M3-1MR5B.42XX.S70BD M3-1MR5B.02YX.S70BD 70004-1840 70004-1841 70004-1842 9501332383676 9501332259834 9501332113662 240AC 240AC 240AC - - - - 1 2 - - - - - -
-
-
-
-
-
-
-
-
-
-
-
-
M3.96-145 DMS-M / 240AC N A2R2 R D M3.96-145 DMS-M / 240AC N A2R4 R D M3.96-145 DMS-M / 240AC N AR2 R D M3-1MR5B.02YX.S72BD M3-1MR5B.02YX.S74BD M3-1MR5B.02XX.S72BD 70004-1843 70004-1844 70004-1845 9501331992138 9501331971294 9501331823852 240AC 240AC 240AC - - - 2 2 1 2 4 2 - - -
-
-
-
-
-
-
-
-
-
-
-
-
M3.96-145 DMS-M / 240AC N PM8 R D M3.96-145 DMS-M / 240AC N R2 R D M3.96-145 DMS-M / 240AC N R4 R D M3-1MR5B.020X.S78BD M3-1MR5B.020X.S72BD M3-1MR5B.020X.S74BD 70004-1847 70004-1848 70004-1849 9501331382625 9501331321273 9501331275347 240AC 240AC 240AC - - - - - - - 2 4 8 - -
-
-
-
-
-
-
-
-
-
-
-
-
M3.96-145 DMS-M / 40DC N 0 R D M3.96-145 DMS-M / 40DC N A R D M3.96-145 DMS-M / 40DC N AR2 R D M3-1MR5B.020X.W70BD M3-1MR5B.02XX.W70BD M3-1MR5B.02XX.W72BD 70004-1850 70004-1851 70004-1852 9501329857630 9501329768264 9501329516452 40DC 40DC 40DC - - - - 1 1 - - 2 - - -
-
-
-
-
-
-
-
-
-
-
-
-
M3.96-145 DMS-M / 40DC N R2 R D M3-1MR5B.020X.W72BD 70004-1853 9501329451982 40DC - - 2 -
-
-
-
-
