M3.48-105 F

Request now Data sheet Instruction manual

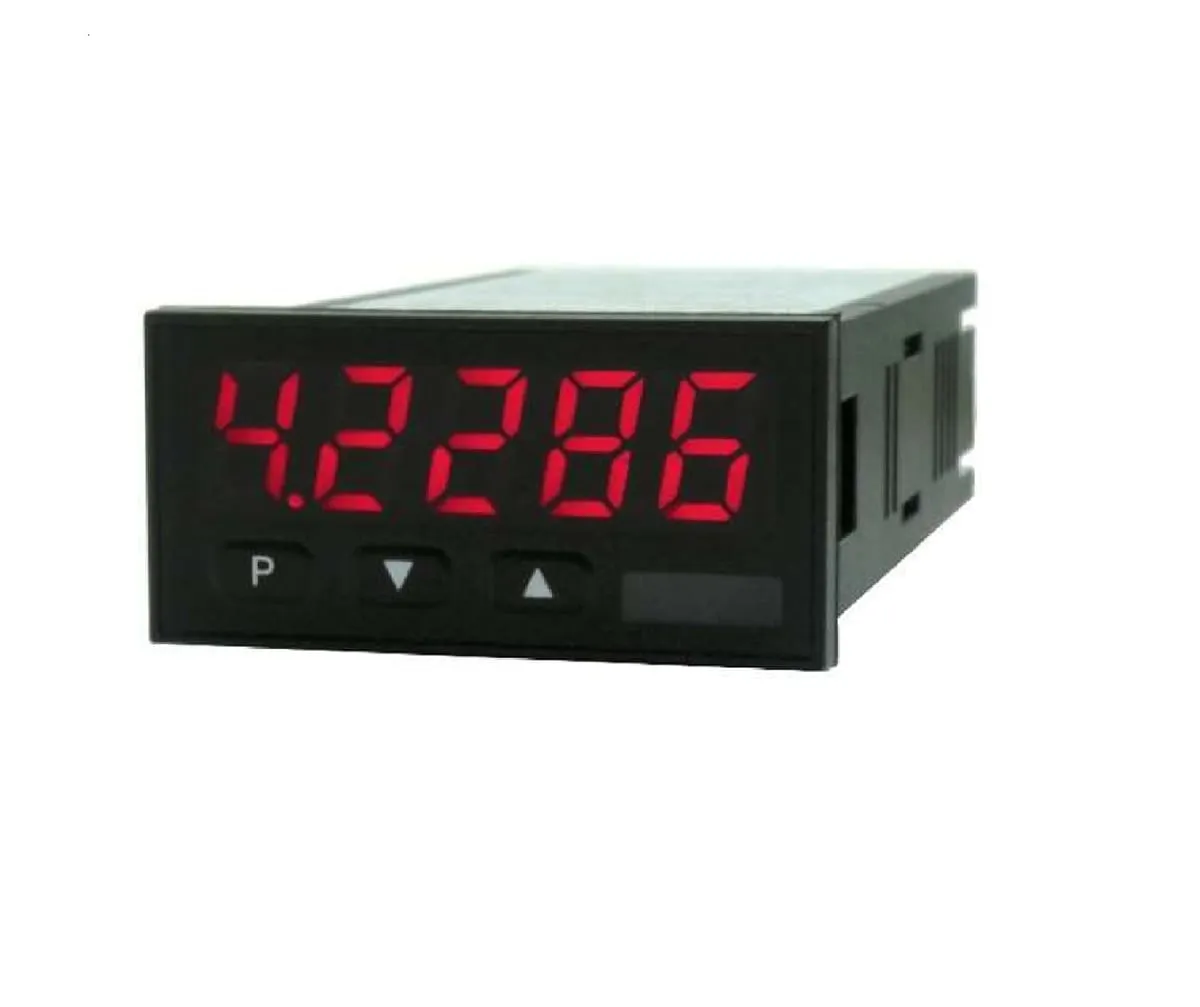

CELSA M3.48-105 F
Technical data
Dimensions (WxHxD)
48 x 24 x 0 mm
Display range
0 - 99999
Support points for linearizing the measurement input
30
MIN / MAX value query that can be switched off
Operating lock via 4-digit code
Membrane keyboard
The M3.48-105 F is a 5-digit display for measuring pulses by means of incremental encoder, NPN/PNP or Namur sensor and a visual limit value monitoring via the display. The configuration is done via 3 front keys or by means of an optional PC software. Optionally available are an analog output, a sensor supply, a digital input, a frequency output and 2 setpoints. Selectable software functions and a direct limit value adjustment in the operating mode complete the device concept.
Product key M3.48-105 F
M3 48 105 F
M3 Housing series

Width x Height: 48 x 24

Digit height: 10 mm

Number of digits: 5

Impuls, Namur, 3-conductor PNP/NPN

 Variants
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
Old name Item number EAN number Auxiliary voltage Encoder supply Analog output (0 / 4-20mA, 0-10VDC, 16bit) Relay output (230VAC / 5A, 30VDC / 5A) PhotoMos output (30VDC / VAC 0.4A) Pulse output (max 10kHz) Display color Data input Profibus DP Digital input (<2.4 OFF, 10V ON, max 30VDC) RS232 RS485
M3.48-105 F / 24DC N APM2 R M3.48-105 F / 240AC N PM2 R M3.48-105 F / 24DC N A R M3-7FR5A.00X7.772AD M3-7FR5A.0007.S72AD M3-7FR5A.00X7.770AD 70004-1556 70004-1610 70004-1615 9502144382635 9502145214270 9502144671555 24DC 240AC 24DC - - - 1 - 1 - - - 2 2 -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
M3.48-105 F / 24DC 245 0 R D M3.48-105 F / 24DC N PM2 R M3.48-105 F / 240AC N 0 R M3-7FR5A.0307.770AD M3-7FR5A.0007.772AD M3-7FR5A.0007.S70AD 70004-1683 70004-1702 70004-1787 9502145147554 9502144593628 9501337455897 24DC 24DC 240AC 24DC/50mA - - - - - - - - - 2 -
-
-
-
-
-
-
-
-
-
-
-
-
-
-
M3.48-105 F / 24DC N 0 R M3-7FR5A.0007.770AD 70004-1788 9501337377380 24DC - - - -
-
-
-
-
-
