Plug-on current transformers
Single-phase bar-primary current transformer for measuring purposes to IEC 61869-1+2, DIN VDE 0414, dimensions to DIN 42600-2. Rated operating voltage 0.72 kV, rated short-time thermal current Iₜₕ = 60×Iₙ, instrument security factor FS 5 up to 1500 A / FS 10 above 1500 A. Insulation class E.
View text ▾
Neutral specification text for direct use in your tender – without type or manufacturer.
Single-phase bar-primary current transformer for measuring purposes to IEC 61869-1+2, DIN VDE 0414, dimensions to DIN 42600-2. Rated operating voltage 0.72 kV, rated short-time thermal current Iₜₕ = 60×Iₙ, instrument security factor FS 5 up to 1500 A / FS 10 above 1500 A. Insulation class E.
- Accuracy class: 0.5 or 1
- Rated primary current: ______ A
- Busbar cross-section: ____ x ____ mm
- Rated secondary current: 5 A or 1 A
- Rated burden: _________ VA

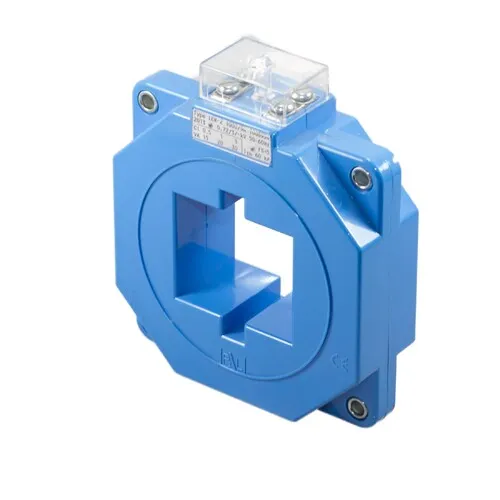

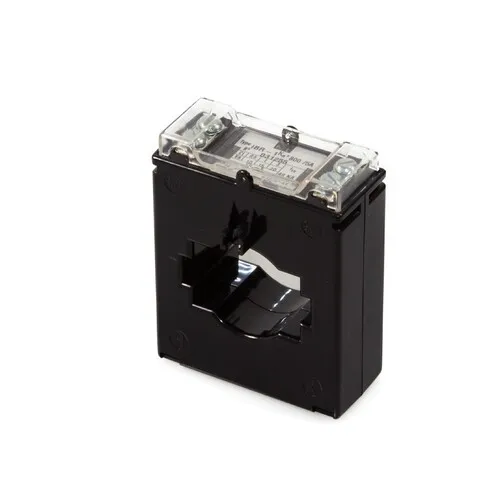

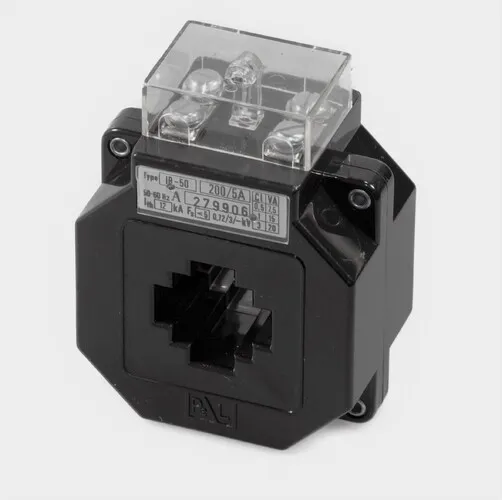

Finger-safe transformer with integrated secondary covers and short-circuit link. Compact design, including fixing screws for busbar mounting and foot mounting brackets.
To be supplied and installed ready for operation.
Selected product:
Manufacturer: ___________________ Type: ____________
Available versions (from product data)
- Rated primary current
- 1 – 6000 A
- Rated secondary current / output
- 1 A / 5 A / 333 mV
- Accuracy class
- 0.5 / 1 / 3
- Rated burden
- 1 – 30 VA
- Instrument security factor
- FS 5 / FS 10
- Frequency
- 50 / 50–60 Hz
- Round conductor
- Ø 20 – 85 mm
- Busbar
- 30 × 10 / 30 × 15 / 40 × 12 / 50 × 12 / 60 × 12 / 80 × 12 / 100 × 10 / 120 × 10 mm; multiple bars 2 – 4
