Split-core current transformers

New

Split-core current transformers (also called clamp-type or openable CTs) are opened, placed around an existing cable or busbar and closed again – the primary circuit does not have to be interrupted. Three types, 60 A to 3000 A, secondary 1 A, 5 A or 333 mV.

Not sure which transformer fits?

The assistant asks step by step about purpose, mounting and current and shows the matching articles.

Start the transformer finder

Basics, types, accuracy classes and selection help are on the main page Current transformers.

Three types of split-core current transformers

Cable split-core CTs TQ and TC are placed around the cable and secured with UV-resistant cable ties. They cover 60 A to 1000 A, secondary 1 A, 5 A or 333 mV, in accuracy classes 0.5, 1 and 3, and come with colour-coded connection leads.

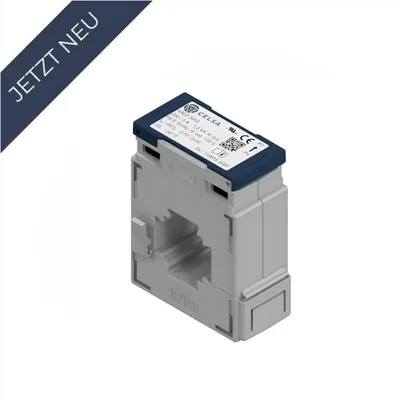

The KALO split-core CT fits cables and busbars: KALO 2010, 3015 and 5012 for 100 A to 1000 A, secondary 1 A, 5 A or 333 mV, class 0.5 or 1. The core opens, clicks audibly into place and is fixed with clamping screws.

Busbar split-core CTs IAG, IAM and IAP open at the push of a button and mount directly on the busbar – for 60 A to 3000 A, secondary 1 A or 5 A, class 0.5, 1 or 3. All split-core CTs comply with DIN EN 61869.

Split-core or plug-on current transformer?

Split-core CTs are the choice for retrofits: energy monitoring in existing installations, sub-metering in live distribution boards and measurements where no shutdown is possible. In a new installation, where the conductor is free anyway, the plug-on current transformer is the most economical and most common type.

Several cable split-core CTs on one meter

The summation current transformers SSRK-2 to SSRK-6 add the secondary currents of two to six cable split-core CTs. Their burden of 0.2 VA is matched to the low output of cable split-core CTs.

Frequently asked questions

What is a split-core current transformer?

A current transformer with an openable core: it is opened, placed around the conductor and closed without interrupting the primary circuit. It is also known as a clamp-type, openable or retrofit current transformer.

Which outputs are available?

1 A or 5 A for meters and energy meters with current inputs. KALO, TQ 27, TQ 42 and TC 18 are also available with 333 mV for devices with voltage inputs.

How accurate are split-core CTs?

Depending on the type, class 0.5, 1 or 3. Class and rated output are stated for every version in the article name and datasheet.

Does the installation have to be shut down?

The primary circuit does not have to be interrupted – that is the advantage of the split-core design. The rules for working near live parts still apply, and the secondary circuit must never be open under load.
