Summation current transformer
A summation current transformer adds the secondary currents of several main current transformers into one output of 1 A or 5 A – so a single meter records the total current of several feeders or incomers. SSR for plug-on CTs, SSRK for split-core cable CTs.
Not sure which transformer fits?
The assistant asks step by step about purpose, mounting and current and shows the matching articles.
Basics, types, accuracy classes and selection help are on the main page Current transformers.
Sub-groups
Products
SSR or SSRK?

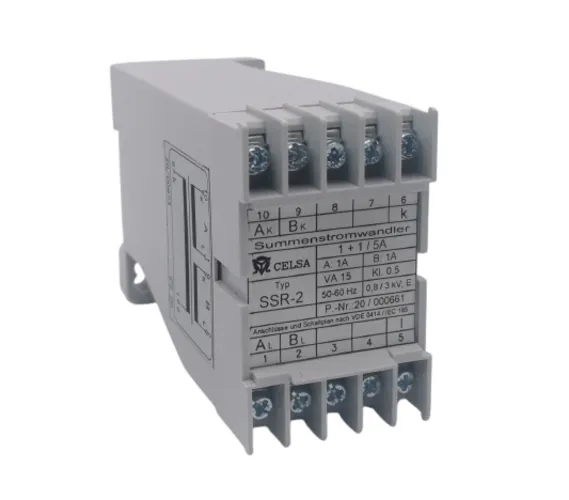

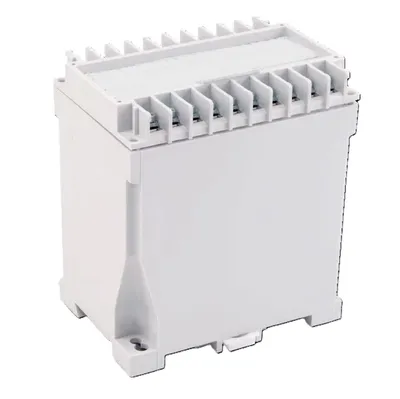

| Series | for main CTs | Inputs | Rated output | Class | Input/output |
|---|---|---|---|---|---|
| SSR-2 … SSR-9 | plug-on CTs, equal ratio | 2 – 9 | 15 VA | 0.5 or 1 | 1 A / 5 A |
| SSR-21 … SSR-91 | plug-on CTs, unequal ratios | 2 – 9 | 15 VA | 0.5 or 1 | 1 A / 5 A |
| SSRK-2 … SSRK-6 | split-core cable CTs | 2 – 6 | 0.2 VA | 0.5 | 1 A / 5 A |
The digit gives the number of inputs (SSR-3: three main CTs); a second digit 1 stands for unequal main CTs. Inputs and output can be combined, e.g. 5+5/5 A, 1+1/1 A, 5+5/1 A or 1+1/5 A.
Connecting a summation current transformer
Each main CT feeds one input of the summation CT with S1 and S2; its output goes to the current path of the meter. All main CTs must be installed with correct polarity (P1 towards the supply), otherwise the currents cancel out instead of adding up. The meter is set to the sum of the rated primary currents: three main CTs 400/5 A on an SSR-3 5+5+5/5 A give 1200/5 A.
Frequently asked questions
What is a summation current transformer used for?
It combines the secondary currents of several current transformers into one signal, so a single instrument or energy meter records the total consumption of several feeders, incomers or transformers.
What is the difference between SSR and SSRK?
The SSR (15 VA, class 0.5 or 1, up to 9 inputs) are designed for plug-on CTs. The SSRK-2 to SSRK-6 have a burden of only 0.2 VA and class 0.5 – matched to the low output of split-core cable CTs.
Can main CTs with different ratios be summed?
Yes, with the summation CTs for unequal main CTs (SSR-21 to SSR-91). For equal main CTs SSR-2 to SSR-9 are sufficient.
